-70%FNIRSI® DST-210 / DST-201 Handheld 3-IN-1 Multimeter Oscilloscope Signal Generator—
$54.95
$16.48The Story
The DST-201/DST-210 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.
Key Features:
-
High-precision oscilloscope function:

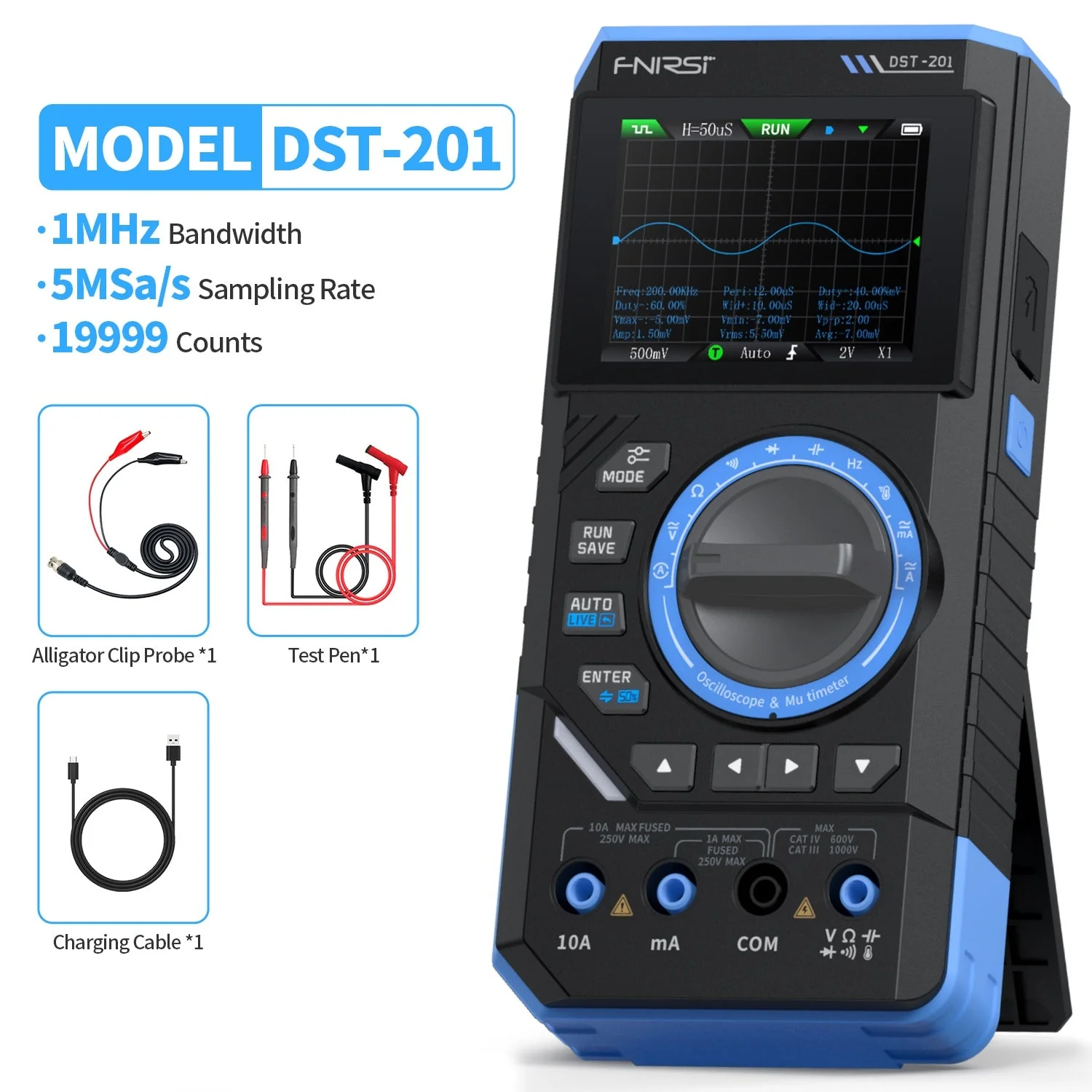

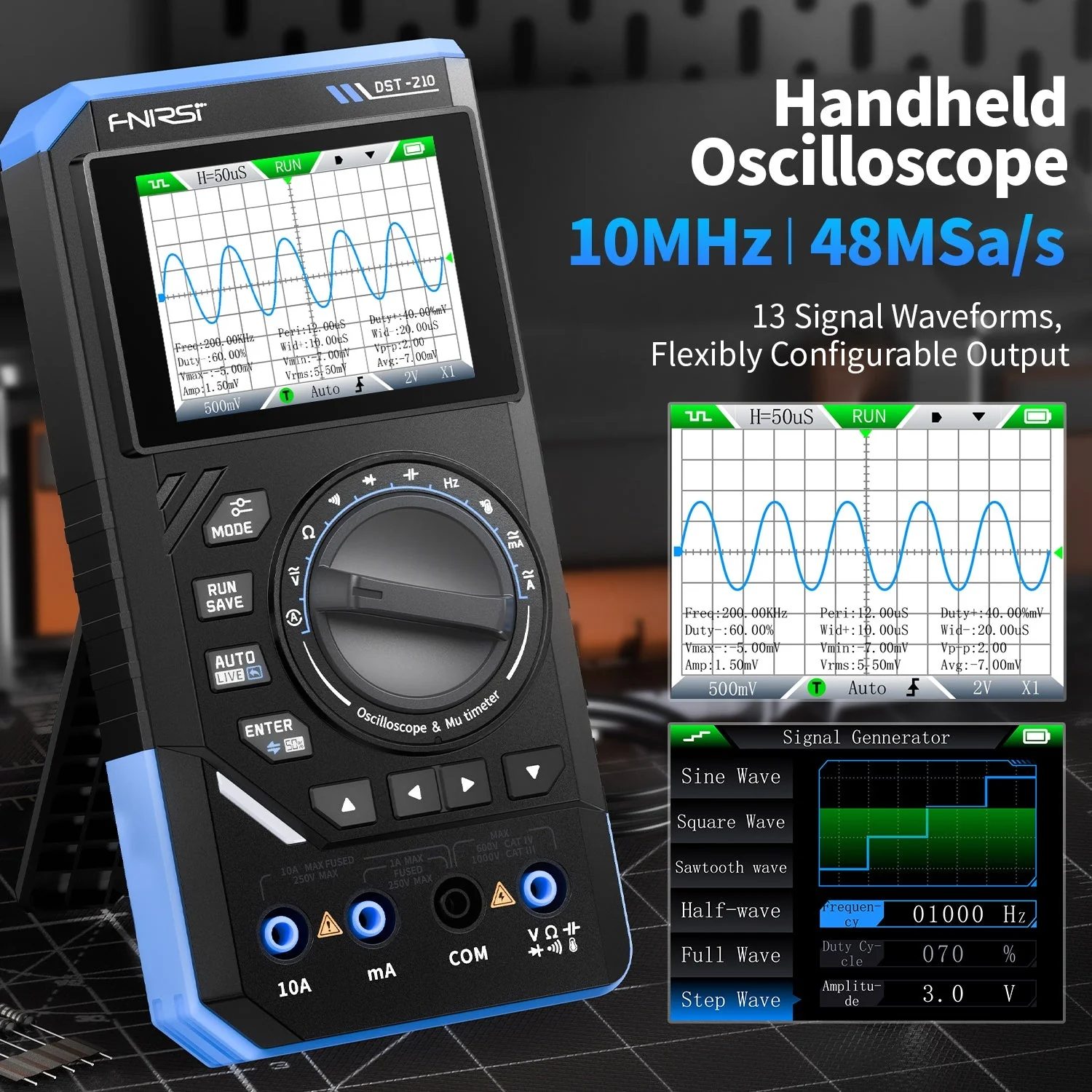

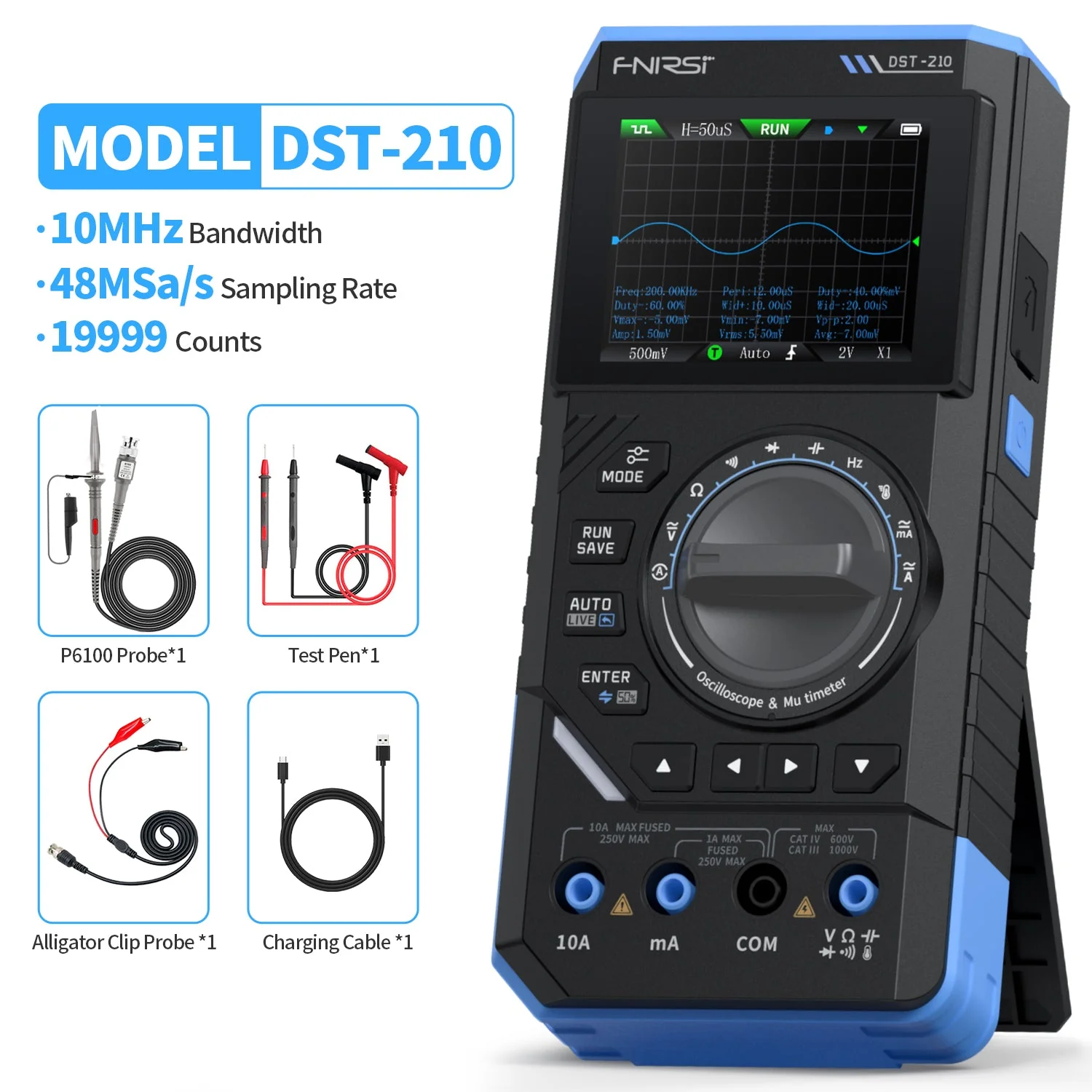

FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications. -
Multi-function signal generator function:
Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs. -
Comprehensive multimeter function:

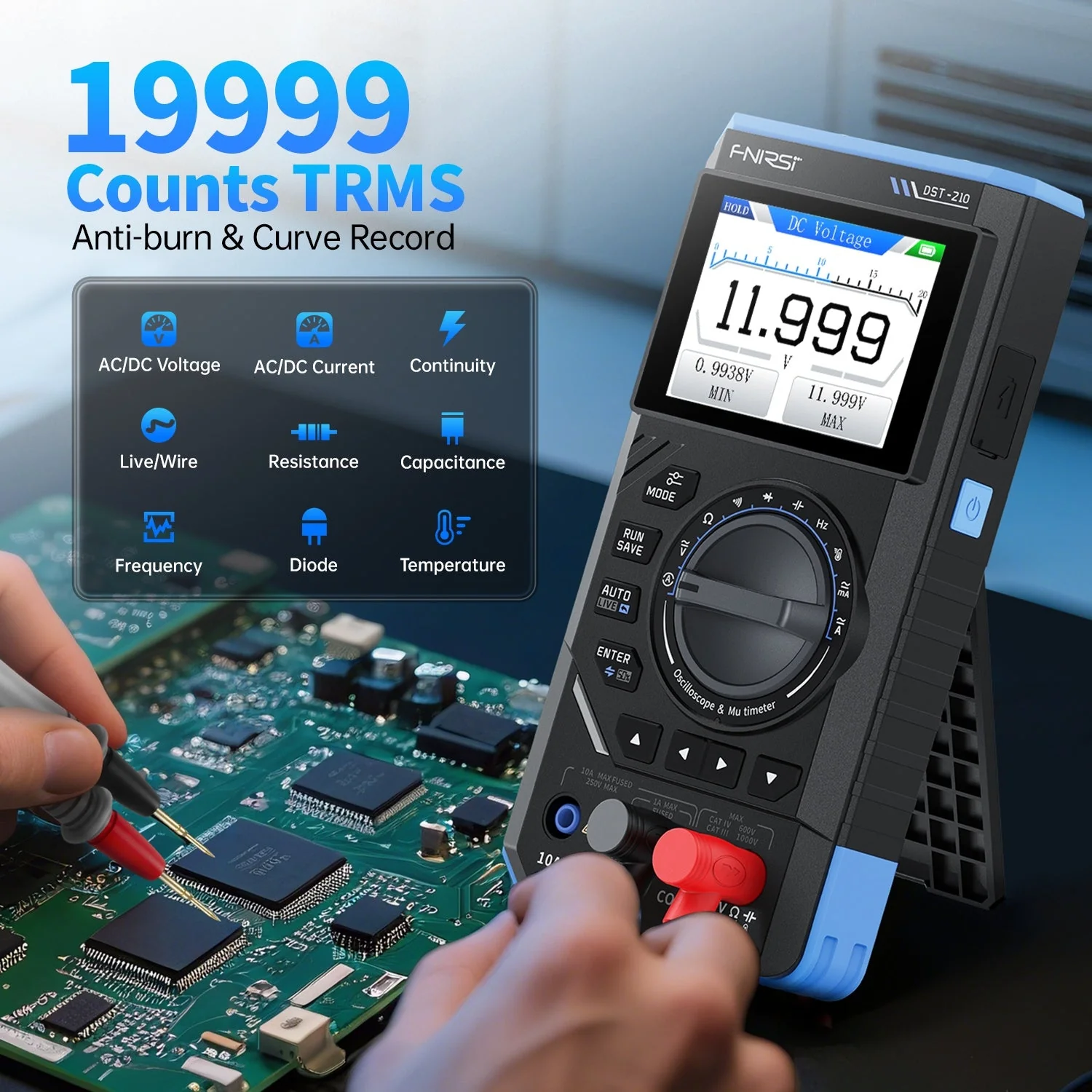

FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements. -
Overload protection and portable design:

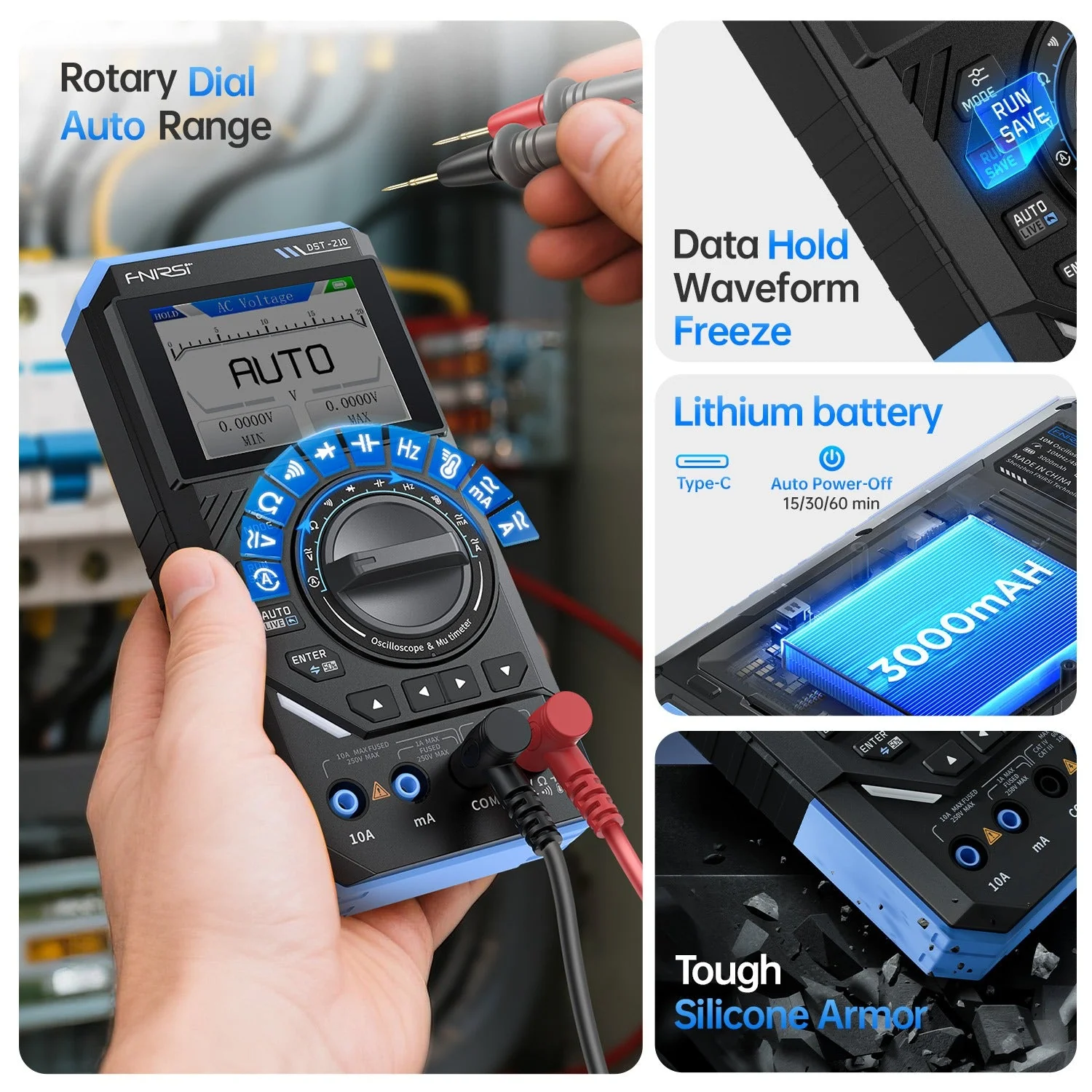

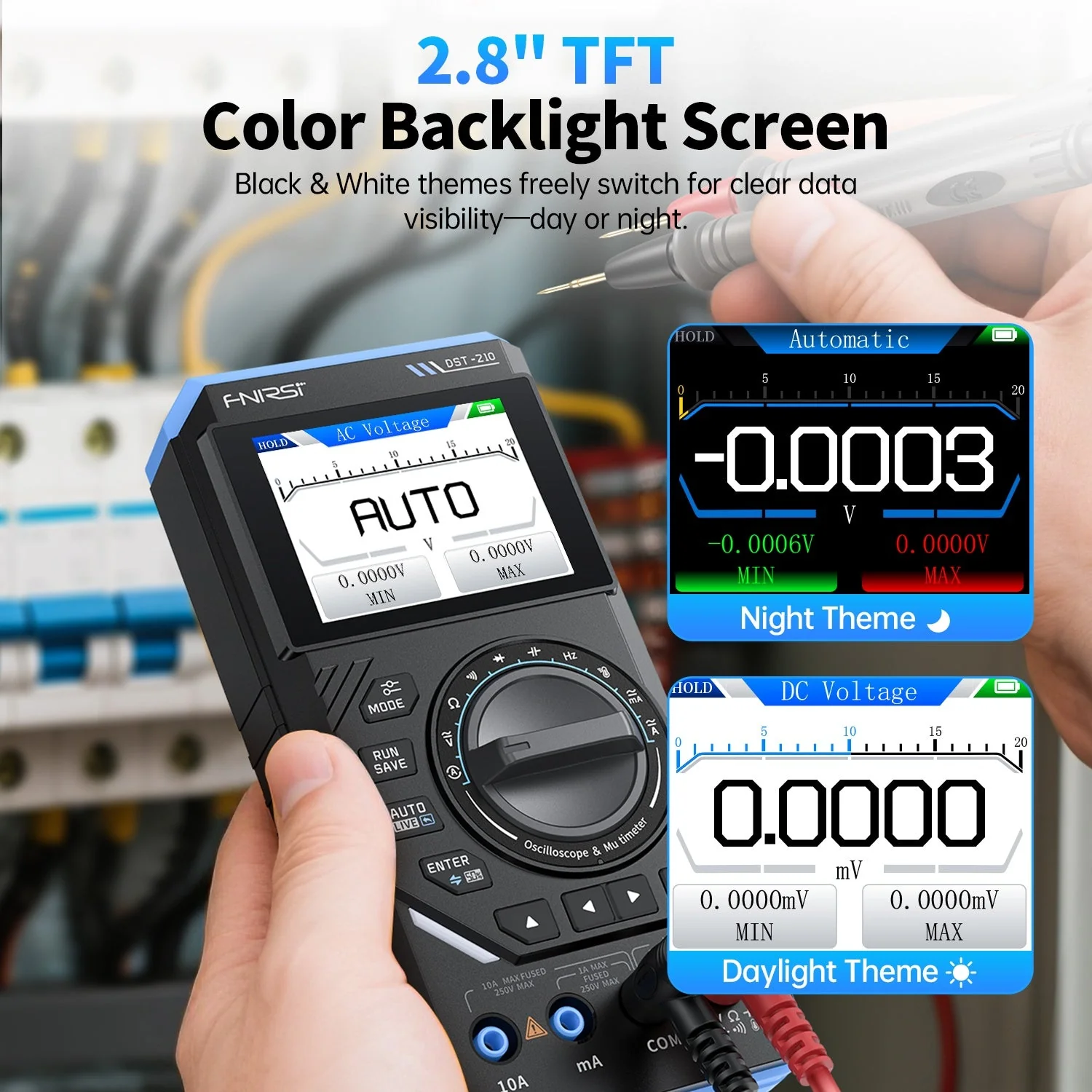

The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use. -
User-friendly and multifunctional:
FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.
Specifications
Basic Parameters:
Model
DST-210 / DST-201
Screen Material
2.8 inches TFT Colorful Screen
Backlight
Brightness adjustable
Power Supply
TYPE-C (5V/1A)
Battery
3000mAh
Languages
中文、English
Product Size
≈177.43×87.47×34.5mm
Bare Weight
≈300g
Oscilloscope Parameters:
Sampling Rate
DST-210: 48MSa/s
DST-201: 5MSa/s
DST-201: 5MSa/s
Analog Bandwidth
DST-210: 10MHz
DST-201: 1MHz
DST-201: 1MHz
Input Impedance
1MΩ
Coupling Mode
AC/DC
Test Voltage Range
1:1 probe: 80Vpp (+40V)
10:1 probe: 800Vpp (+400V)
10:1 probe: 800Vpp (+400V)
Vertical Sensitivity
10mV/div ~ 10V/div(x1)
Vertical Displacement
Adjustable with indicators
Horizontal Time Base
DST-210: 50ns~20s
DST-201: 500ns~20s
DST-201: 500ns~20s
Trigger Mode
Auto / Normal / Single
Trigger Type
Rising Edge & Falling Edge
Trigger Level
Adjustable with indicators
Waveform Freeze
Support(HOLD function)
Auto Measurement
Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle
Multimeter Parameters:
DC Voltage
1.9999V / 19.999V / 199.99V / 1000V
AC Voltage
1.9999V / 19.999V / 199.99V / 750.0V
DC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
1.9999KΩ / 199.99Ω
1.9999KΩ / 199.99Ω
Capacitance
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF
9.999mF / 99.99mF
9.999mF / 99.99mF
Frequency
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature
(-55~1300℃) / (-67~2372℉）
Diode / Continuity
Support
Single Probe AC Voltage Measurement (LIVE)
Support
Signal Generator Parameters:
Output Waveform
Support 13 types of waveform output
Waveform Frequency
DST-210: 0-50KHz
DST-201: 0-10KHz
DST-201: 0-10KHz
Square Duty Cycle
0-100%, Square and Sawtooth are adjustable
Waveform Amplitude
0.1V-3.0V
